Solar Irrigation System, Automatic Garden Watering System for 30 Potted Plants, Drip Irrigation System with Timer and 35 m Hose for Garden, Balcony Plants, Outdoor Pot Plants

Product Description

Solar irrigation system, automatic drip irrigation set for plants

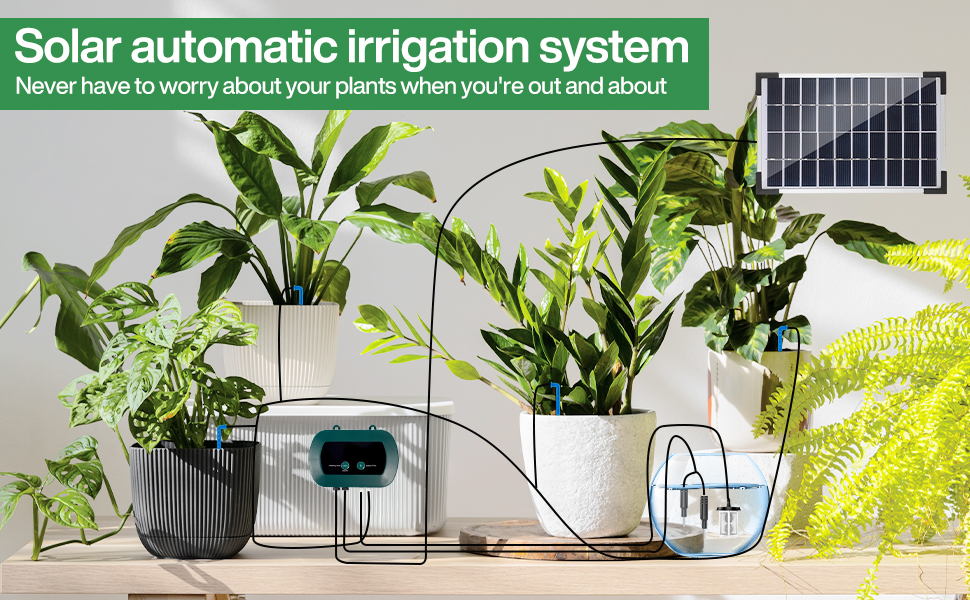

Automatic solar irrigation system

Designed for balconies, patios, small gardens without taps and fixed power supply. Take water directly from a container such as a bucket without tap. Automatic watering at preset intervals and quantities. Provide pipes, ports and droppers that you can freely mix and adjust.

Features

– Automatic watering equipment, convenient for office workers, business trips, travel.

– Built-in rechargeable 2200mAh battery, the solar panel can convert solar energy into electricity.

– Choose the right mode and water output based on your plants’ water needs. No water consumption.

– IP65 waterproof solar panel for outdoor and indoor use.

– Anti-siphon design

– Water up to 30 potted plants

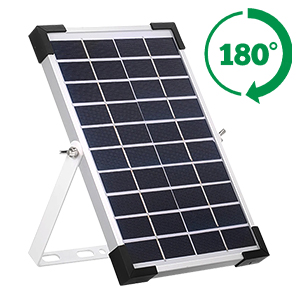

– 0°-180° adjustable solar panel

– Underwater or overwatering alarm

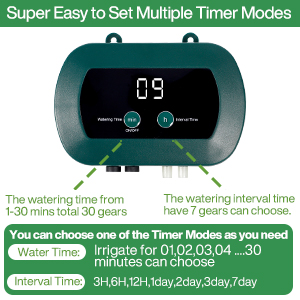

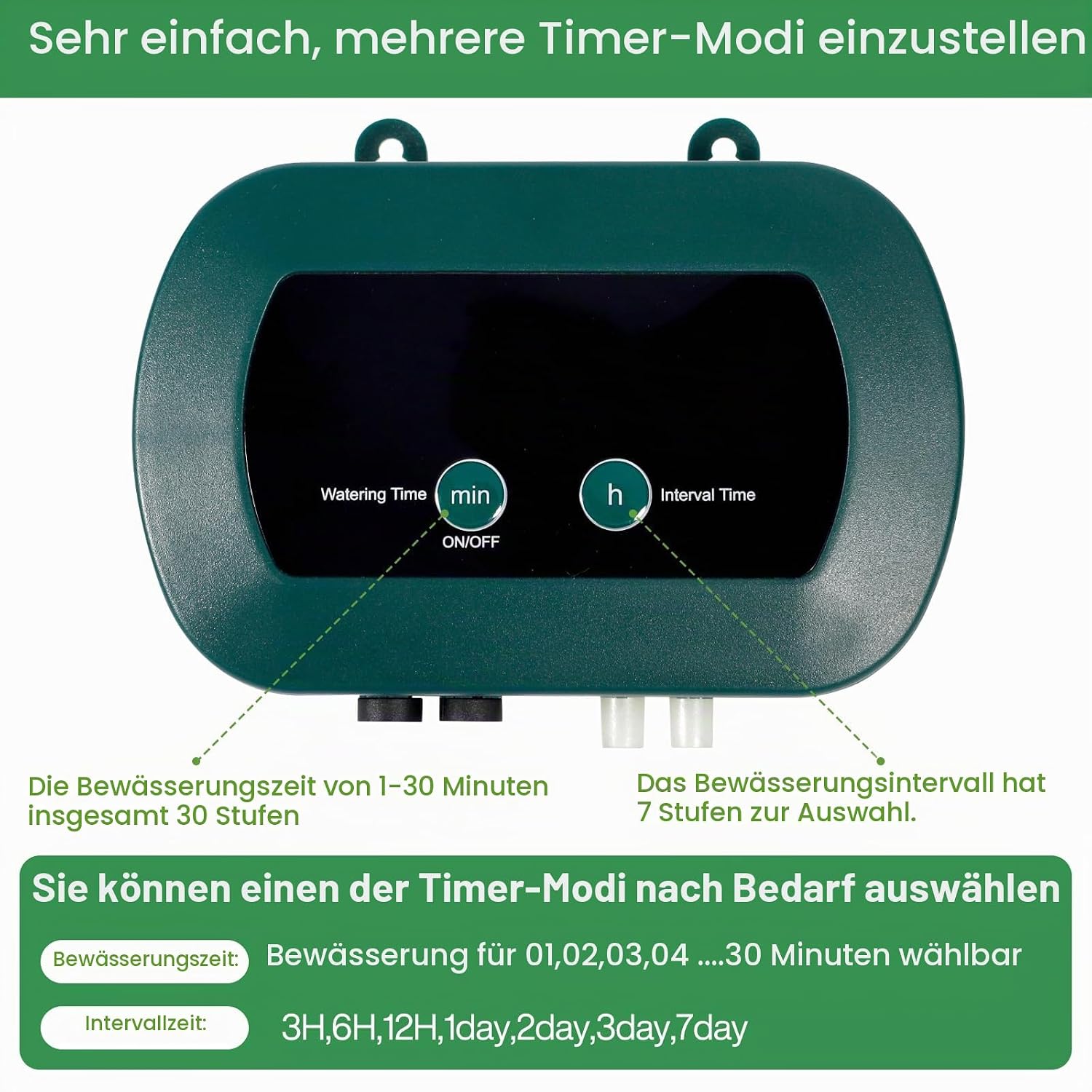

You can choose one of these types of timer modes

Water for 1, 2, 3, 4, ….30 minutes in 30 watering times to choose from. Water for 3 hours, 6 hours, 12 hours, 1 day, 2 days, 3 days, 7 days, total 7 interval times to choose from.

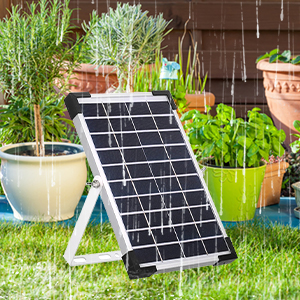

IP65 rain and waterproof design

The highly efficient 5W solar panel is equipped with a tempered glass surface and an aluminium frame to withstand harsh weather.

The solar irrigation system is equipped with waterproof and sunlight-resistant, durable materials according to IP65. Just make sure the solar panel/control box is placed where it receives both sunlight and the bucket.

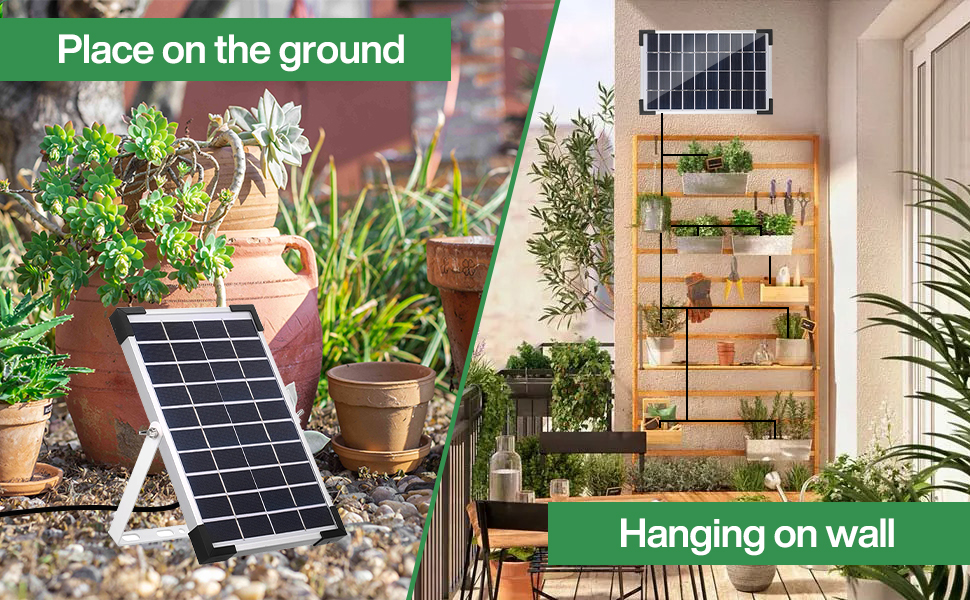

Optional plug-in and hang

The solar panel can be placed on the floor, but also hung directly on the wall. The bracket can be rotated 180°, which allows you to easily adjust the sun angle.

How to set up the watering timer?

Press the ON/OFF switch button to make the product ON/OFF.

Press the “Water Time” button and then the “Interval Time” button to select the watering frequency.

For example, the watering time is 1 minute and the interval time is 3 hours, which means that the product is watered for 1 minute every 3 hours.

Every time the watering time button is pressed, the system will irrigate once and restart the timer.

The irrigation flow of this device is about 2 l/min (i.e. the sum of the water output of all droppers is 2 l/min).

How to fix machine failures?

Water shortage solution: (“bi bi” sound twice per minute, the indicator light flashes E1) add water and restart. Filter clogged solution: (“bi bi” sound twice per minute, the indicator light flashes E2). Clean the filter and restart it. Pump clogged solution: (“bi bi” noise twice per minute, the indicator light flashes E3). Clean you the driper and Pump and restart the system. Power shortage (standby mode) solution: the decimal point of the digital tube flashes and the water pump is switched off. Expose the solar panel to direct sunlight. After charging, it automatically resumes operation.

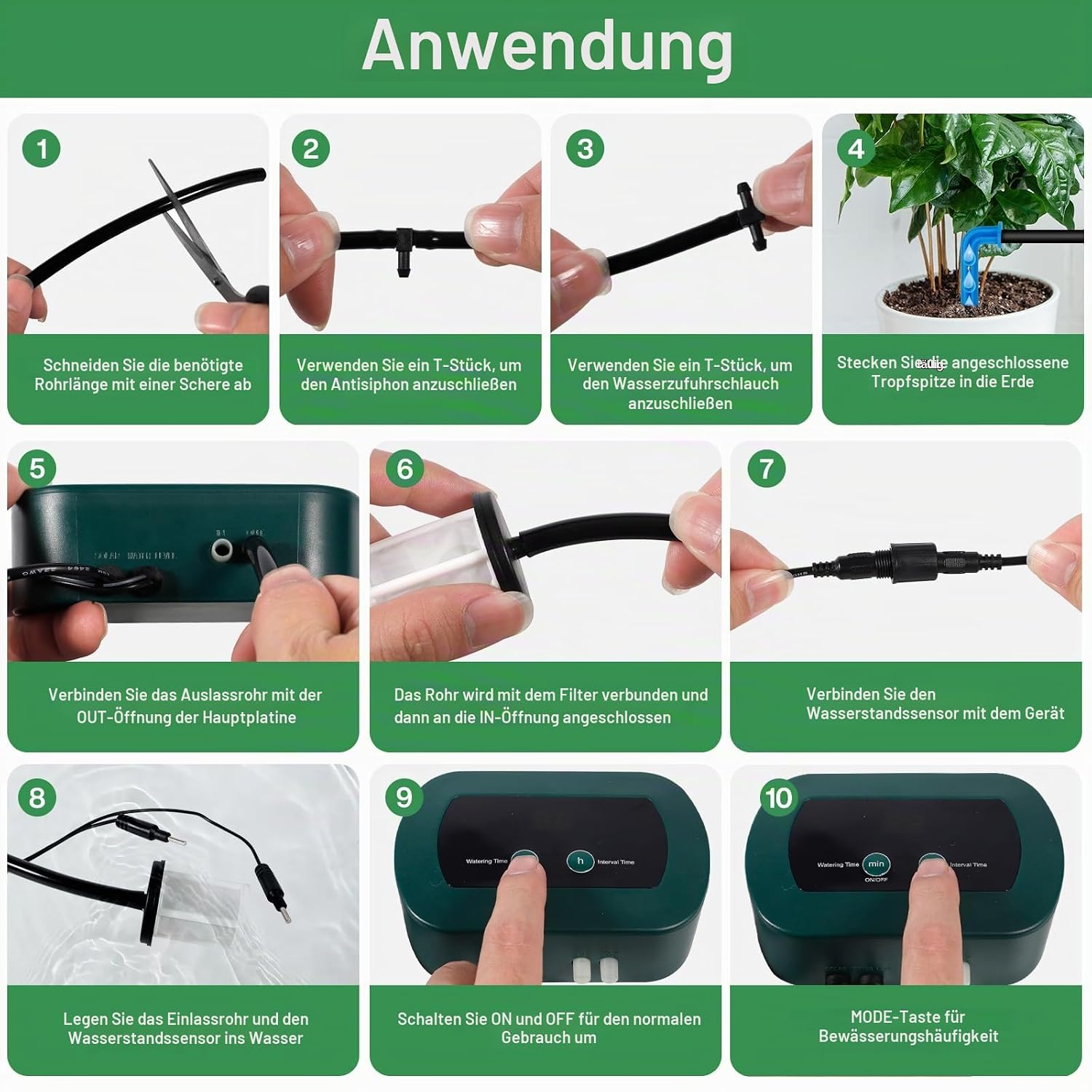

Installation instructions:

Package includes:

10 m water distribution hose x 3

1 x 5 m main hose

1 x solar panel

Controller x 1

1 x U-shaped bracket

large tee x 30

Small T-piece x 5

Dripper x 30

Anti-siphon x 1

1 x water filter

Outlet pipe plug x 1

Circlip x 3

Screws x 2

Manual x 1

Automatic solar watering: using solar power supply technology, the high capacity of the solar panels and the good water resistance extend the life of the drip irrigator, and the adjustable alignment allows all-round sunlight reception. When you are on holiday or on a business trip, our automatic irrigation will help you solve your watering problems and will give you a helhelfer in your garden.
Multiple timer modes: automatic solar irrigation system with 2 buttons to choose the watering frequency and duration, more convenient and clear than just one button. Timing mode adjustable has 7 intervals are available 3H/6H/12H/1d/2d/3d/7d (hour or day), watering time is optional from 1 minute to 30 minutes. Different plants have different absorption rates, it allows deep drip irrigation plants and can save up to 70% water.
Intelligent automatic alarm: When the water pump or filter is blocked or the water is not enough, the solar irrigation system beeps to remind you to add water. If the water level is low or the probe is blocked in the water, it beeps intermittently (the indicator light flashes E1/E2/E3), then please clean the pump or filter or add water to make the solar irrigation system work again.
Easy to install and use: the solar drip irrigation is easy to install, you can install it according to the number of plugs required, and the installation of the irrigation system takes only a few minutes. Assembly requires no tools. Warm tips: immerse the end of the hose in hot water for one minute before opening the plug. This makes the plug easier to insert.
Complete set and versatile: the solar irrigation system set contains a solar panel, a 35 m long hose, 30 drip heads, 30 ground spikes, anti-siphon, filter and connectors and manual (English language not guaranteed). Waters up to 30 plants at a time. Suitable for lawn irrigation, patio, garden, vegetable watering, hanging baskets, potted plants, flower beds, greenhouses, etc. Slow and even watering allows the plants to absorb the water more fully and grow vigorously.
